Trestor Malaysia | Catalogue

Rear

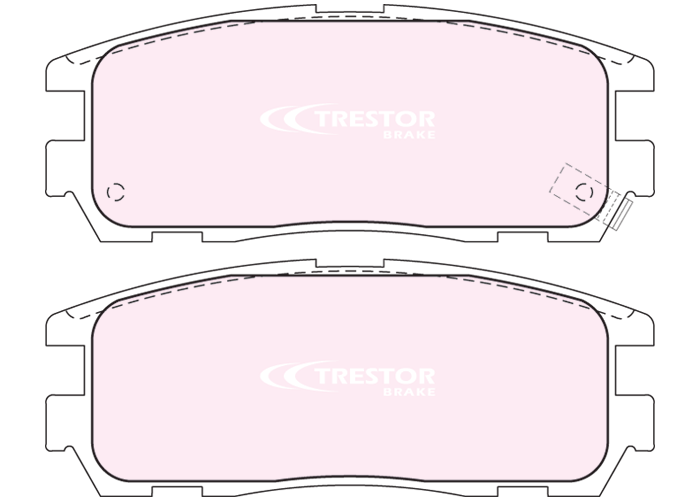

TDB1280

Type

Disc Pad Set

Dimension

4 Pads 109 x 43 x 16 mm

Structure

LH Inner + RH Inner + 2 Outer Pads

FMSI

7460-D580

WVA

21875

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Great Wall

X200 Wagon (November 2011)

View all variants

2.0 DTFI CC 4x4 4 Door Wagon

Great Wall

X240 Wagon (October 2009 - March 2011)

View all variants

2.4 4WD [H3] (Disc/Disc)
2.4 4WD [H5] (Disc/Disc)

Holden

Frontera (October 1995 - June 2004)

View all variants

4WD Wagon (Single Piston Disc / 254mm Drum)
4WD Wagon (Single Piston Disc / Disc)
4WD Wagon (Twin Piston Disc / Disc)

Holden

Jackaroo (April 1992 - 1996)

View all variants

3.1 UBS69
4WD
4WD (Alternative Rear Shoe)
4WD (Rear Shoe with Pin)
L2 V6 4WD,UBS25,UBS26

Holden

Jackaroo Monterey (December 1994 - September 2004)

View all variants

4WD, Wagon

Holden

Rodeo (February 1998 - February 2003)

View all variants

2.2, 2.8TD, 3.2 V6 [R9] (257mmDisc / 295mm Drum)
2.8TD, 3.0TD, 3.2 V6 [R9] (280mmDisc / Disc)
4x2, 4WD
LS, 4x2, 4WD
RA 4WD Pickup (14 inch) (Disc / 254mm Drum)
RA 4WD Pickup (14 inch) (Disc / 295mm Drum)
TFG6, TFG7 2 & 4WD JS, Diesel, 4 cyl petrol
TFR,TFS 4x2, 4WD (Disc / 254mm Drum)

Honda

Horizon (1994)

View all variants

3.2 UBS25, UBS69

Isuzu

Big Horn (December 1991 - March 1998)

View all variants

2.0 UBS12, UBS13, 2.2 UBS52 (Disc / Drum)
2.0 UBS12, UBS13, 2.2 UBS52, 2.8 UBS55 (Disc / Drum)
2.2 UBS52 (Disc / Drum)
2.6 UBS17, 2.8 UBS55 (Disc / Disc)
3.0 UBS73, 3.5 UBS26
3.1 UBS69, 3.2 UBS25

Isuzu

MU (1993 - 2001)

View all variants

2.6, 2.8 UCS17, UCS55
2.8 UCS55, 3.0 UES73, 3.1 UCS69
3.2 UER25, UES25 (Disc / Disc)
3.2 UER25, UES25 (Disc / Drum)

Isuzu

Trooper (1992 - 1995)

View all variants

Trooper (USA)
Trooper (USA) (4 Wheel Disc)
Trooper (USA) (Disc / Drum)

Holden

Rodeo

2.8TD, 3.0TD, 3.2 V6 [R9] (280mmDisc / Disc)

Front

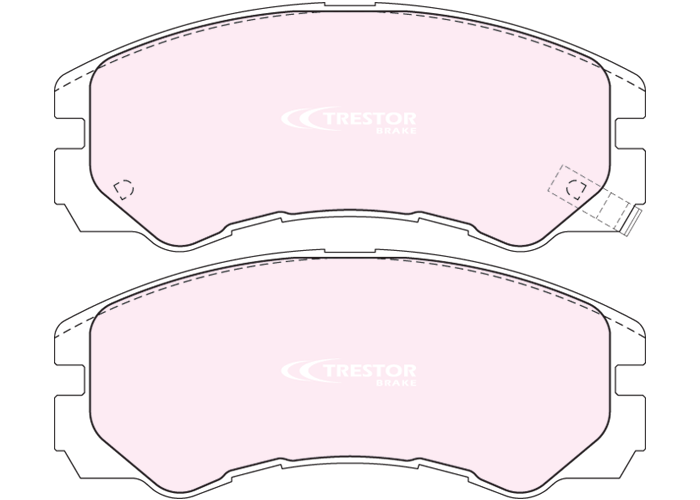

TDB1270

Disc Pad Set

4 Pads 138 x 59 x 16 mm

LH Inner + RH Inner + 2 Outer Pads

7459-D579

21845

Vehicle Compatibility

Frontera (October 1995 - March 1999)

Jackaroo (April 1992 - 1996)

Jackaroo Monterey (December 1994 - September 2004)

Rodeo (February 1998 - February 2003)

Horizon (1994)

Big Horn (December 1991 - March 1998)

MU (1993 - 2001)

Piazza (1991 - 1993)

Trooper (1992 - 1995)

Rear

TDB1280

Disc Pad Set

4 Pads 109 x 43 x 16 mm

LH Inner + RH Inner + 2 Outer Pads

7460-D580

21875

Vehicle Compatibility

X200 Wagon (November 2011)

X240 Wagon (October 2009 - March 2011)

Frontera (October 1995 - June 2004)

Jackaroo (April 1992 - 1996)

Jackaroo Monterey (December 1994 - September 2004)

Rodeo (February 1998 - February 2003)

Horizon (1994)

Big Horn (December 1991 - March 1998)

MU (1993 - 2001)

Trooper (1992 - 1995)
